Oil-Water Separator Installation

Located in Pennsylvania

  • Capability
    • Distributed Power, Renewable & Industrial
  • Completion May–December 2020

Project Overview

In the spring of 2020, we were contracted to install a new oil-water separator at a Generating Station in southeast Pennsylvania. Combining the resources of our Heavy Civil, Mechanical, and Industrial Electrical teams, we mobilized quickly for this fast-paced project to meet the December deadline. The equipment installed helps the plant remediate water used in its maintenance department, separating out oil before it is prepared for discharge.

Explore Project Details

Project Scope of Work Included:

  • Demolition of Two Above-grade Fracking Tanks
  • Demolition of Two Underground Oil Water Separators and an Oil Holding Tank
  • Shoring the Excavations
  • Installation of Two New Underground Oil Water Separators and 2 Solid Separator Tanks
  • Installation of an Option 1 Block

Challenges and Results

The project’s main challenges were related to working within the tight spaces demanded by the functioning power station. Due to the presence of overhead power lines, using a crane to set the new tanks was not possible. The project’s footprint was also limited by Option 1 security blocks in one corner, which needed to be protected. All inlet and outlet lines were to remain in place and be reused, but our client ultimately expanded our contract to remove and replace their associated valves.

Our Heavy Civil team had several meetings to resolve these challenges and were able to find solutions with careful planning and execution. Shoring for the installation of the new tanks and piping was intensive, as the limits allowed for the project were +/- 1 foot.

As a result, demolition proceeded smoothly, and all installations were performed while staying within the allowed limits. Our teams completed all project work on schedule, and the new oil-water separator system was put into service the first week of December 2020.
Previous

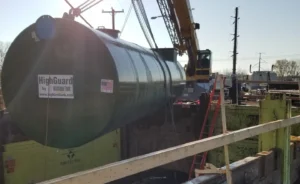

Oil and water separator tank being installed

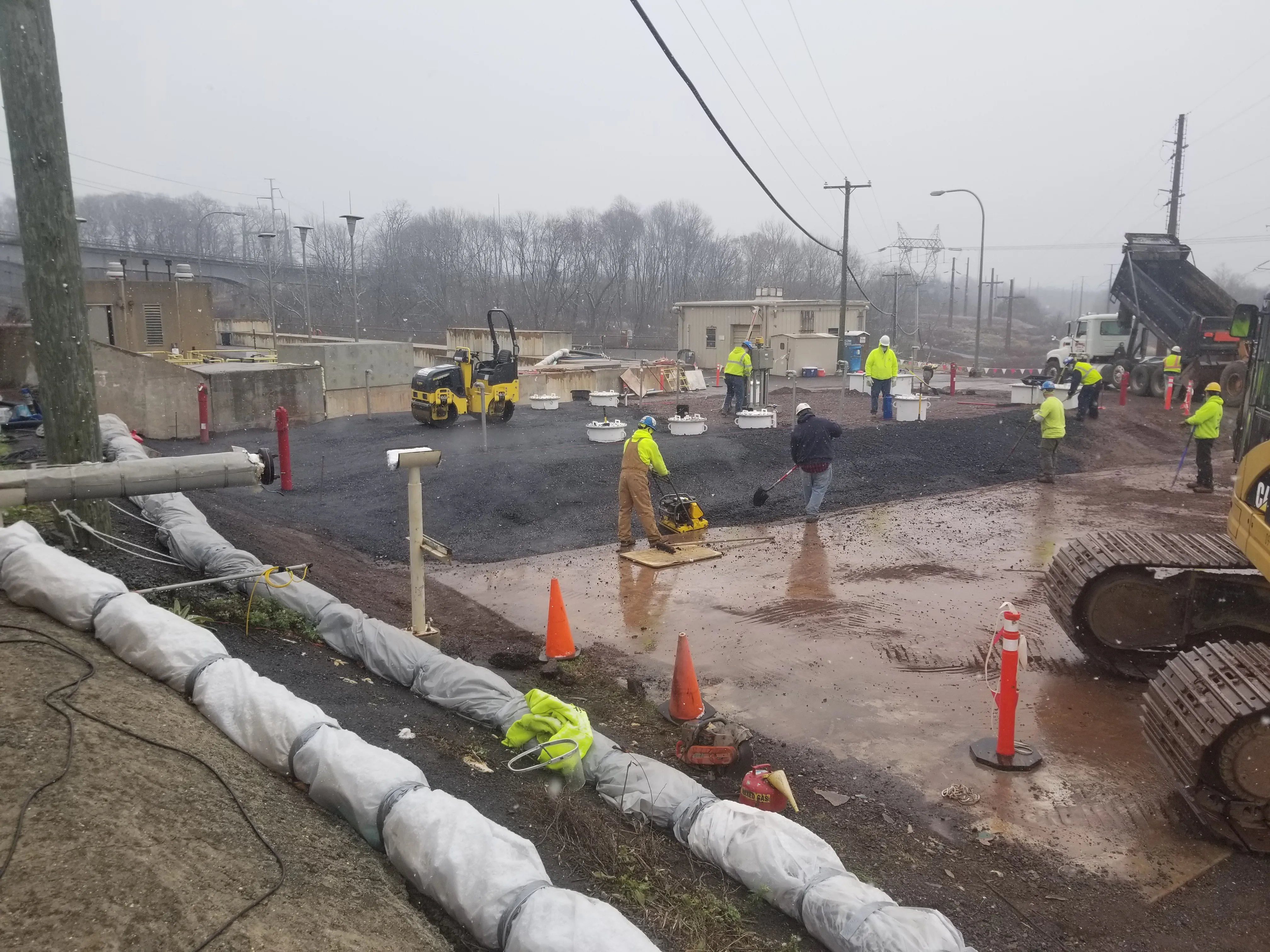

20201209 124839
